Sesam Examples

Last update: 8th April 2024

This page contains examples for the Sesam software suite. For software support, please contact us or send us an email.

Do you want to share an example? Feel free to propose an example for inclusion below.

Sort the examples:

Sesam Manager -- Jacket, Jack-Up and Frame Structures

• Comprehensive Analysis of Jacket

  Open description of example

  Download zip file to import into Sesam Manager



  This example involves using Sesam Manager, GeniE, Wajac, Sestra, Splice, Framework, Stofat and some auxiliary programs. It includes several analyses of a 4 legged jacket:
  - Static (ULS) analysis of jacket fixed at sea floor
  - Free vibration (eigenvalue) analysis of fixed jacket
  - Static (ULS) analysis of jacket with piles
  - Linearising piles and soil replacing them by linear springs
  - Free vibration (eigenvalue) analysis of jacket with linear spring support
  - Deterministic fatigue analysis
  - Spectral fatigue analysis based on static structural analysis
  - Spectral fatigue analysis based on dynamic structural analysis
  - Spectral fatigue analysis based on equivalent static loads structural analysis
  - Stochastic fatigue analysis based on dynamic structural analysis (pure beam model)
  - Stochastic fatigue analysis based on dynamic structural analysis of tubular joints converted to shell models
  - Earthquake analysis
  - Transportation analysis with pre-stress
  Import the zip file into a new Sesam Manager job. A document explaining the analyses is included. Select the job and go to Attachments (tab to lower right in Sesam Manager) to find this and other files related to the example.

  File size: 4,357 KB, last update:

• Code Checking Jacket

  Open description of example

  Download zip file



  This example involves using GeniE, Wajac, Sestra and Splice. Unzip the downloaded example file and Import the Model_Start.gnx into a new GeniE workspace. This example includes:
  - Running wave pile soil analysis
  - Creating capacity model
  - Performing code check for beam and joint
  - Create a report for code check
  - Redesign
  A document explaining the procedure and step by step instruction is included.

  File size: 2,406 KB, last update:

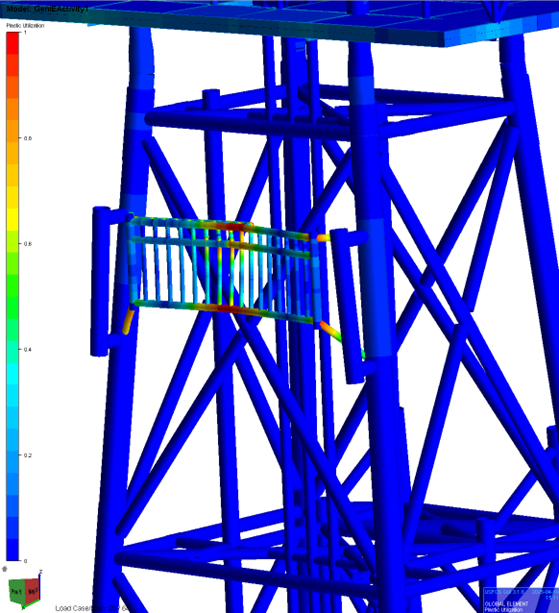

• Pushover Collapse Analysis of Jacket

  Open description of example

  Download zip file to import into Sesam Manager



  This example shows how to use Usfos to do a pushover collapse analysis of a jacket. The jacket is subjected to gravity and buoyancy plus a wave that is scaled (unrealistically) to provoke a pushover collapse. The input to GeniE to create the model and run analysis activities is provided. Manual steps are taken to export the model from GeniE to Usfos and to do some minor adjustments to the Usfos input. A document attached to the job explains how to do this.

  File size: 1,536 KB, last update:

• Linear Buckling, P-Delta and Stress Stiffening Analyses of Ocean Frame Structure

  Open description of example

  Download zip file to import into Sesam Manager



  This example shows how to do the three analyses types: linearized buckling, P-delta and stress stiffening. The example used to demonstrate the three analyses is an ocean frame structure (jacket). It is run as a job in Sesam Manager. Create a new job in Sesam Manager and import the zip file to run the example. Read the PDF document attached to the job.

  File size: 1230 KB, last update:

• Linear Buckling, P-Delta and Stress Stiffening Analyses of Jackup Leg

  Open description of example

  Download zip file to import into Sesam Manager



  This example shows how to do the three analyses types: linearized buckling, P-delta and stress stiffening. The example used to demonstrate the three analyses is a jackup leg. It is run as a job in Sesam Manager. Create a new job in Sesam Manager and import the zip file to run the example. Read the PDF document attached to the job.

  File size: 1393 KB, last update:

• Computing Dynamic Amplification Factors

  Open description of example

  Download zip file to import into Sesam Manager



  This example involves using Sesam Manager, GeniE, Wajac, Sestra and Xtract. The example demonstrates how to do compute dynamic amplification factors (DAFs) for a slender structure subjected to wave loads. Import the zip file into a new Sesam Manager job.

  File size: 945 KB, last update:

• Gap/Contact Analysis

  Open description of example

  Download zip file to import into Sesam Manager



  This example involves using Sesam Manager, GeniE, Presel, Sestra, SestraGap and Xtract.
  The example demonstrates how to run SestraGap to solve a contact-gap problem.
  The model is a single jackup leg with a triangular prism illuding the jackup deck. The material density of the triangular prism is high so as to capture the deck mass. The edges of the prism are fixed for rotation about X and Y so as to achieve the S-shaped deformation forced by the deck. The leg bottom (three points) are fixed for the translations.
  Import the zip file into a new job. A pdf file (JackUpLegWithGapContact.pdf) is attached and provides details on the analysis.
  Note that GeniE version 8.3 offers simplified contact analysis which for many cases is adequate. Being fully controlled by GeniE this method is much simpler than the procedure of the present example. Go to a GeniE tutorial in advanced modelling and find an example of transportation analysis with contact problem to learn about contact analysis controlled by GeniE.

  File size: 363 KB, last update:

• Fatigue Analysis with Manually Specified Oscillating Loads

  Open description of example

  Download zip file to import into Sesam Manager



  This example involves using Sesam Manager, GeniE, Sestra and Framework. Create a new job in Sesam Manager and import the zip file to run the example.
  The example demonstrates how to run a so-called direct deterministic fatigue analysis of a structure. This is a fatigue analysis with manually specified oscillating loads. (As opposed to wave loads computed by Wajac.) An example of such load is rotating machinery (with eccentric mass).
  The example is a simple tower subjected to acceleration fields, horizontal and rotational, all together 4 loading situations. Each loading situation is modelled by two loads representing the two extremes of the loading situation. (For rotating machinery two concentrated forces may be used, a positive force and a negative force representing the two extreme loading situations.)

  File size: 303 KB, last update:

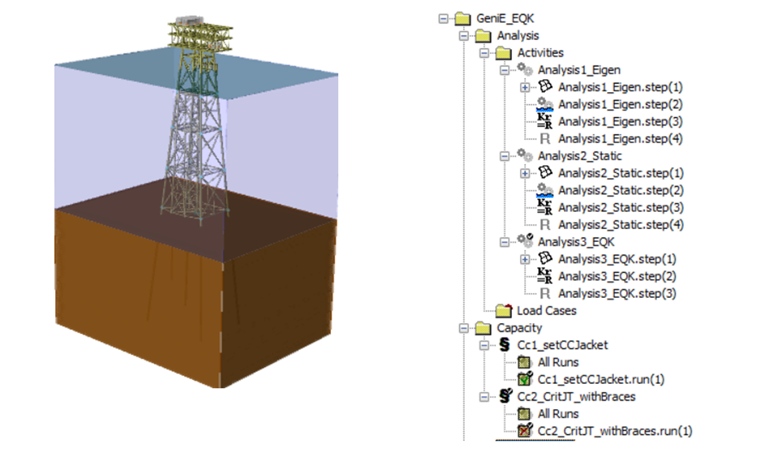

• Earthquake Analysis of Jacket

  Open description of example

  Download zip file to import into Sesam Manager



  This example involves using Sesam Manager, GeniE, Wajac, Sestra, Prepost and Framework. Import the zip file into a new Sesam Manager job. A document explaining the analyses is included.
  The example demonstrates how to run an earthquake analysis based on the Sesam Manager job template TwoAnalysesAndMerge. The merging of Sestra results files is facilitated by Sesam Manager through automatic creation of the required Prepost input.

  File size: 1,165 KB, last update:

• Wind Fatigue Analysis

  Open description of example

  Download zip file to import into Sesam Manager



  This example involves using Sesam Manager, GeniE, Wajac, Sestra and Framework. It includes wind fatigue analysis of a flare boom. Read the pdf document attached to the job.

  File size: 1,401 KB, last update:

Sesam Manager -- Floaters

Note that the HydroD installation includes several examples of use. Start HydroD, press F1 to open the help pages, and click the Examples link.


• Floater Hydrodynamic Analysis

  Open description of example

  Download zip file to import into Sesam Manager



  This example involves using Sesam Manager, GeniE, HydroD, Postresp, Sestra and Xtract. The example demonstrates how to do a hydrodynamic analysis followed by a structural analysis of a floating object. Analysis of a condition with waterfilled compartments is also included. Import the zip file into a new Sesam Manager job. Read the PDF document attached to the job.

  File size: 1,103 KB, last update:

Sesam Manager -- Various Analyses

• Exporting and Importing Matrix Superelement

  Open description of example

  Download zip file to import into Sesam Manager



  This example involves using Sesam Manager, GeniE, Presel, Sestra 8.8 and Xtract. The example demonstrates how to create a matrix superelement which may be stored and used in later analyses. Import the zip file into a new Sesam Manager job. Read the PDF document attached to the job.
  Note that this analysis is based on using Sestra 8.8. Sestra 10 cannot yet be used.

  File size: 379 KB, last update:

• Superelement Technique Utilized in Intact/Damaged Analysis

  Open description of example

  Download zip file to import into Sesam Manager



  This example involves using Sesam Manager, GeniE, Presel, Sestra and Xtract. The example demonstrates how to use the superelement technique of Sesam to do intact and damaged analyses of a module structure with three identical storeys. Import the zip file into a new Sesam Manager job.

  File size: 517 KB, last update:

• Tension/Compression Analysis

  Open description of example

  Download zip file to import into Sesam Manager



  This example involves using Sesam Manager, GeniE, Sestra and Xtract. The example demonstrates how to analyse a module with tension-only and compression-only members. Import the zip file into a new Sesam Manager job. Read the pdf document attached to the job.

  File size: 716 KB, last update:

GeniE

Note that the GeniE installation includes additional examples of use. Start GeniE, press F1 to open the help pages, and click the Tutorials link.


• GeniE Learning the Basics and Getting Started B1

  Open description of example



  A small introduction to GeniE. New users should do this tutorial first. Applications used in this tutorial: Basic GeniE with no special extension, plus Sestra
  Start GeniE, from a new Sesam Manager job or from the Windows Start menu, in the DNV folder.

  File size: 1,614 KB, last update:

• GeniE Snack Pack

  GeniE Snack Pack



  The purpose of the GeniE snack pack is to give you access to a number of utilities and special functions not yet available from the graphical user interface of GeniE.

  For the advanced user it is also possible to learn from these script files, for example by making your own versions of them or even by adapting them for new type of operations.

  File size: - KB, last update:

• Eigenvalue Analysis for a jacket structure

  Open description of example

  Download zip file for GeniE



  This example is about Eigenvalue Analysis for a jacket structure using GeniE and Sestra. It is recommended to use the latest version of GeniE and Sestra for this task.

  File size: 183 KB, last update:

• Couple Beam with Shell Model Using Support Rigid Link

  Open description of example

  Download zip file for GeniE



  This example demonstrates how to use the support rigid link functionality of GeniE to couple a beam element with a shell/plate model. This is typically used when a beam is partly modelled as a beam element and partly using plate/shell elements.

  File size: 77 KB, last update:

• Support Rigid Link: Dependent and Released Rotations and More

  Open description of example

  Download zip file to import into Sesam Manager



  This example demonstrates, by four different models, alternative use of the Support Rigid Link: "Include all nodes in region, released rotations", "Include all nodes in region, dependent rotations" and "Include only nodes on support points and curves in region". The last option is shown with two different sets of support curves to demonstrate the level of control of dependent nodes.

  Import the zip file into Sesam Manager, alternatively find the GeniE gnx file in the zip file. Follow the instructions in the PDF that also brielfy explains the difference in results.

  File size: 234 KB, last update:

• Parametric Naming



  Naming function suitable for scripting.

  File size: - KB, last update:

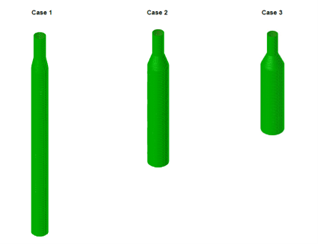

• Parametric Modelling of Corrugated Bulkhead

  Open Description of example

  Download input journal file for GeniE



  This example demonstrate GeniE scripting function to make corrugated plates, by defining dimensions of corrugated plates as input parameters. Some JavaScript statements, like “for”, “if”, “do… while…”, are found in this example. Concept plates and meshing will be archived with this example script.

  File size: 328 KB, last update:

• Creating reports by JScript



  Download/view the PDF per topic:
  Report with Illustrations
  Report loop over loadcases
  Report loop over ModelViews
  Changing view direction


  File size: - KB, last update:

• Move Loads



  JScript to move all loads and equipments along with the structure.

  File size: - KB, last update:

SIMA

• How to run Sima Runtime Engine SRE

  Open description of example

  Download zip file



  This example explains how to run Sima analysis without using graphical user interface with the help of the Sima Runtime Engine (SRE) and Sima Python library (SIMAPY). Particularly, we will run several cases of floating offshore wind turbine (OWT) coupled analysis with different sea states as a preparation to perform time domain fatigue analysis in Sesam Wind Manager.

  File size: 1,173 KB, last update:

• Line Break Analysis in Sima

  Open description of example

  Download Sima stask file



  This document introduces an example model of an export system installation with line break scenario, as shown in Figure 1-1. There are 7 mooring lines and one Oil Offloading Line (OOL) line that are connected to an Oil Offloading Buoy (OOB). In the simulation, three mooring lines (line 1, line 2 and line 6) will be disconnected from the OOB.

  File size: 0,696 KB, last update:

• Air Gap Analysis of Tension-Leg Platform

  Open description of example

  Download Sima stask file



  This document introduces an example model of a tension-leg platform with defined diffracted wave fields and air gap check points, as shown in Figure 1-1. There are 10 risers and 12 tendons connected to the TLP. Two air gap check points are defined with one above the body origin of the TLP and another one close to the column of the TLP.

  File size: 0,851 KB, last update:

• Wet Towing of a Spar Wind Turbine

  Open description of example

  Download Sima stask file



  This example introduces wet towing operation of a spar-type floating offshore wind turbine by three towboats in a relatively calm wave and wind condition. A common towing configuration, featuring a leading towboat and two supporting towboats, is used. Additionally, the functionality of dynamic positioning (DP) system of the towboats is also demonstrated.

  File size: 0,812 KB, last update:

• Turret moored FPSO

  Open description of example

  Download Sima stask file



  The example shows how an internal turret can be modelled for single-point mooring.

  The floater consists of two bodies, FPSO and Turret. FPSO is a typical SIMO-type body that can freely move in 6-DOFs. Turret is a special SIMO-type body that was designed for fixed, prescribed, or articulated structures.

  File size: 0,423 KB, last update:

• FPSO Jumper

  Open description of example

  Download Sima stask file



  This document introduces an example of modelling of a complex system including a free-standing hybrid riser tower with jumpers and a vessel with bell mouths. as shown in Figure 1-1. The FPSO is modelled as Support Vessel and connected with gas jumper, water jumper, production jumpers and control cables through bell mouths on the side of FPSO.

  File size: 1,191 KB, last update:

• Pipe Layer

  Open description of example

  Download Sima stask file



  This document introduces an example model of a pipe layer vessel conducting pipe laying operation, as shown in the figure. The pipe layer has a stinger at the stern of the vessel. The pipe is supported by the stinger and lowering towards the seabed.

  File size: 1,069 KB, last update:

• 15MW Floating Offshore Wind Turbine

  Open description of example

  Download Sima stask file



  This document introduces an example of a 15MW floating offshore wind turbine (FWT) model built in Sesam software Sima. The 15MW FWT model consists of a rotor nacelle assembly, a tower, a Semi-submersible foundation and a 3-line mooring system. A ROSCO controller is used in this model, the aero-hydro-servo-elastic coupling is considered.

  File size: 2,041 KB, last update:
